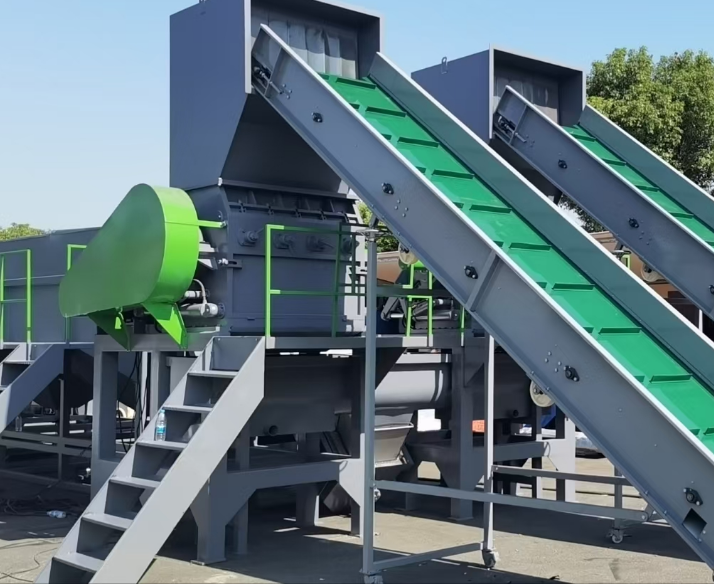

Plastic crusher
◇ This machine is suitable for crush many kind of plastic products like plastic drum ,plastic bottle,plastic sheet, plastic injection waste material and plastic film
◇ Low energy consumption, easy to install, operate and maintain
◇ Change the different diameter sieve, can get different size of final scrap.
◇ Machine automatic stop when the cutting blades are exposed.
◇ Dust curtain fitted at the feed hopper and the discharge
|
Model |
PC600 |
PC800 |
PC1000 |
PC1200 |
PC1400 |
|
Feeding mouth |
530x600mm |
530x800mm |
705x1000mm |
705x1200mm |
800x1400mm |
|
Rotary diameter |
450mm |
450mm |
600mm |
600mm |
700mm |
|
Rotary blades |
6 pcs |
6 pcs |
10 pcs |
10 pcs |
10 pcs |
|
Fixed blades |
4 pcs |
4 pcs |
4 pcs |
4 pcs |
4 pcs |
|
Screen mesh |
12-50mm (depend on customer request) |
||||
|
Motor power |
30 kw |
37 kw |
55-75 kw |
75-90 kw |
110 kw |
|
Hydraulic motor |
1.1 kw |
1.1 kw |
1.5 kw |
1.5 kw |
2.2 kw |
|
Machine size |
2000x1550x2500mm |
2000x1750x3150mm |
2100*1750*3200mm |
2300x2150x3300mm |
2630x2500x3770mm |
|
Weight |
2600kg |
3100kg |
3500kg |
4500kg |
8000kg |
