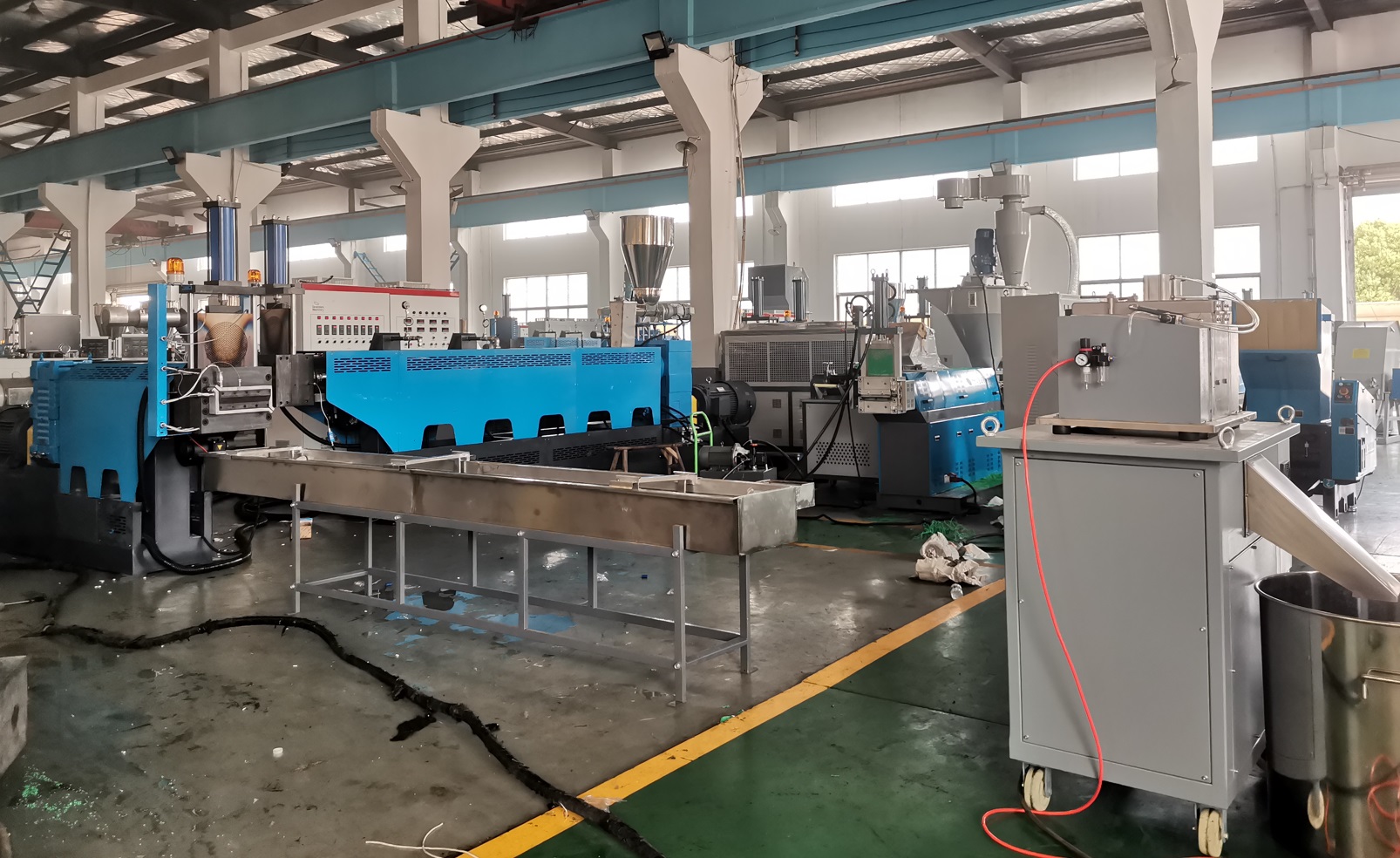

Plastic double stages pelletizing machine- force feeder type
SJ series double stage pelletizing line is mainly designed for processing PE,PP rigid flake or waste film flake. The advantage of the double stage pelletizing line is better melting and the material is more clean after two filtering from screen changers.It is an ideal machine for the kinds of little bit dirty material. For screw L/D varies according to the material condition,for example,rigid material or film flake.
|
Model |
Screw Diameter |
L/D |
Main motor |
Output |
Cutting method |
|
SJ120/120 |
120 |
25 |
55kw |
150-200kg/h |
Die face cutting or strand cutting |
|
120 |
10 |
30kw |
|||
|
SJ140/140 |
140 |
25 |
75kw or 90kw |
250-350kg/h |
|
|
140 |
10 |
37kw |
|||
|
SJ160/160 |
160 |
25 |
160kw |
450-600kg/h |
|
|
160 |
10 |
45kw |
|||
|
Note |
The capacity is based on the raw material.The output for rigid flake and film flake are different,as well as the material.We offer solution based on the client’s actual requirements. |
||||
