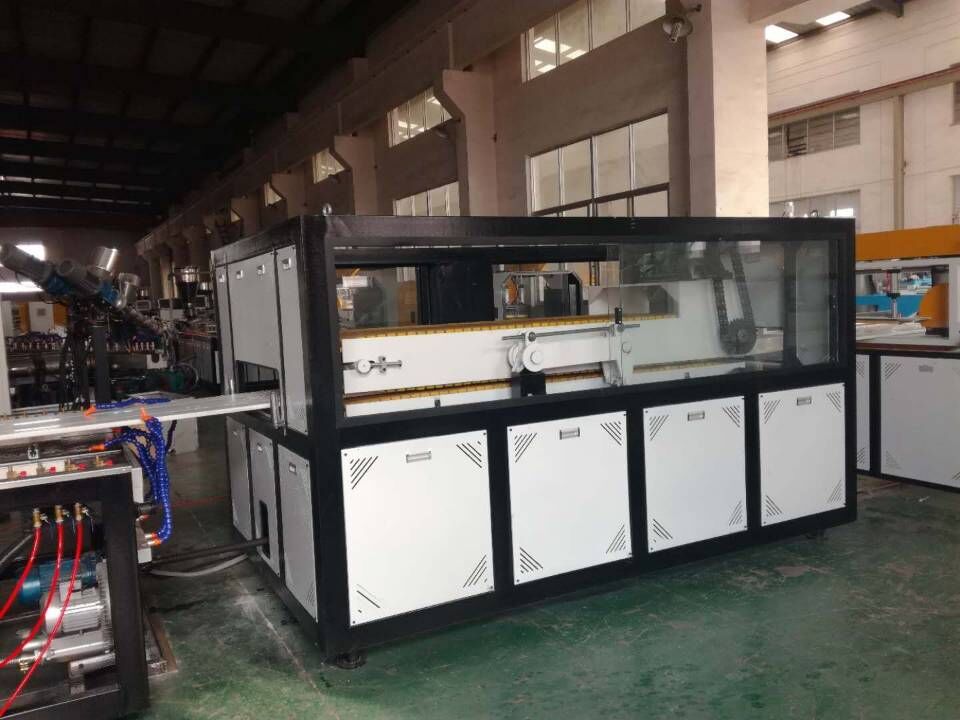

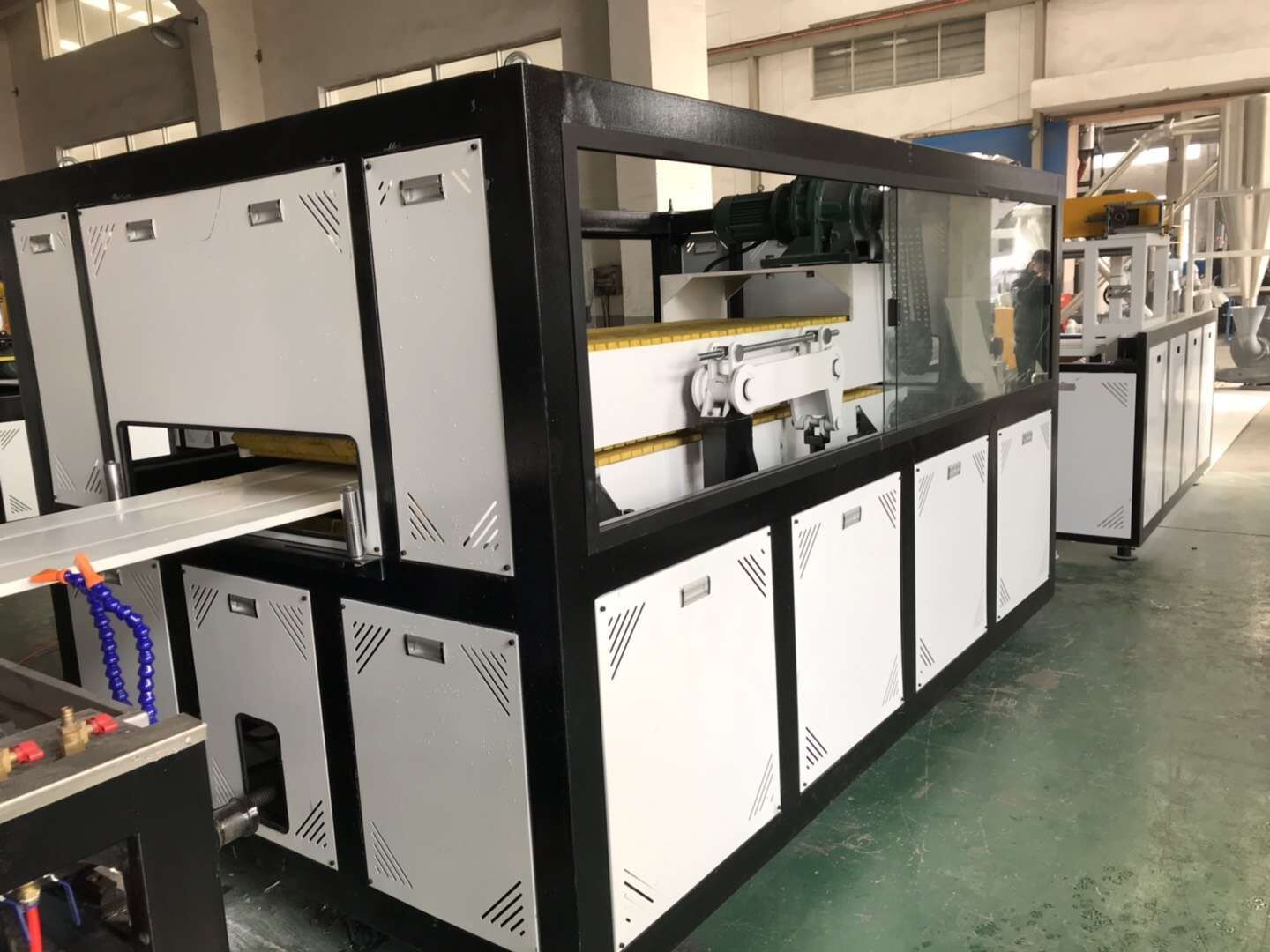

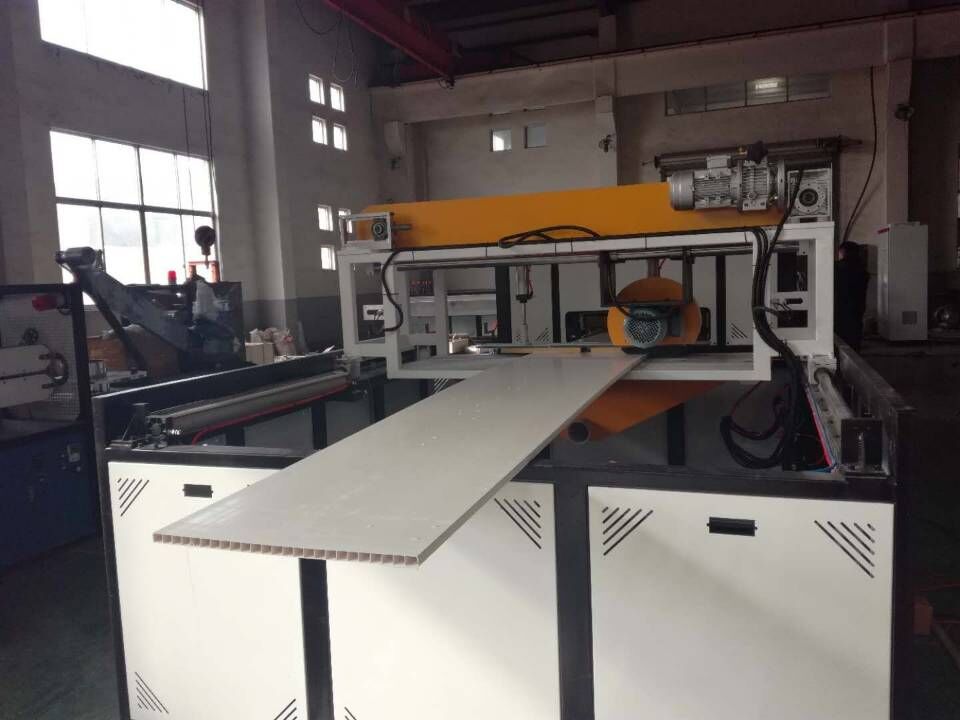

PVC ceiling panel machine
This production line is designed according to international latest technology, mixed PVC with plant fibre symmetrically. It adopts high-efficiency conical double-screw extruder with forcible cooling system to extrude and form. The wood plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse. It has been widely used in wide door, partition panel, construction template, base plate of container, furnish panel, etc.
Model |
|
SJSZ51/105 |
SJSZ65/132 |
SJSZ80/156 |
Screw dia. |
mm |
Φ51/Φ105 |
Φ65/Φ132 |
Φ80/Φ156 |
Screw max. rotation speed |
r/min |
40 |
34.7 |
38 |
Main extruder power |
KW |
15 |
37 |
55 |
Barrel heating power |
KW |
8 |
24 |
36 |
Central height |
mm |
1000 |
1000 |
1000 |
Main products |
|
Frame, Door leaf, Batten |
Frame, Door leaf |
|
Screw heating and cooling |
|
Conduction oil |
||
Barrel heating and cooling |
|
Electricity heater, Force cooling by air |
