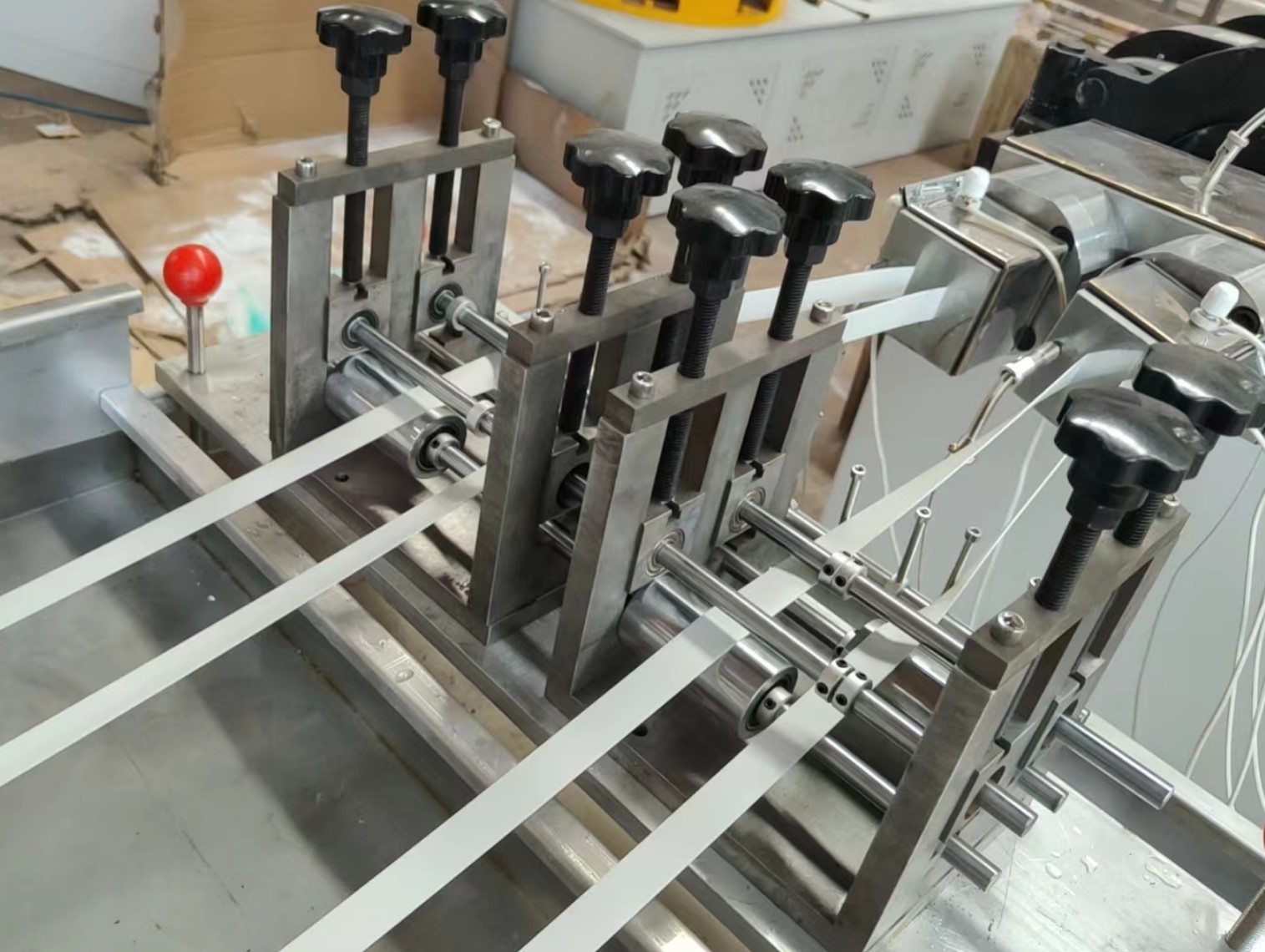

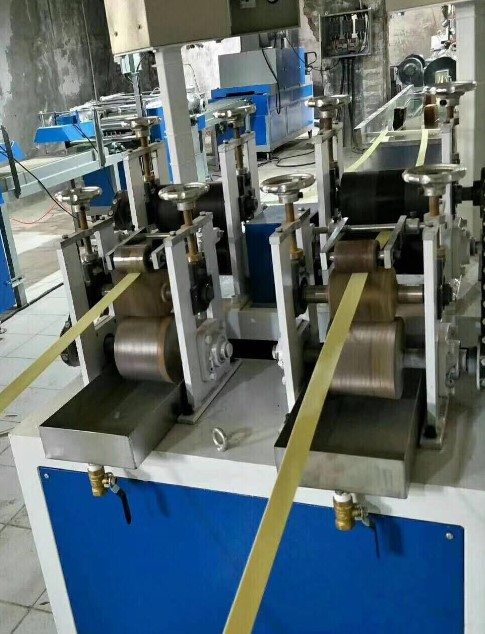

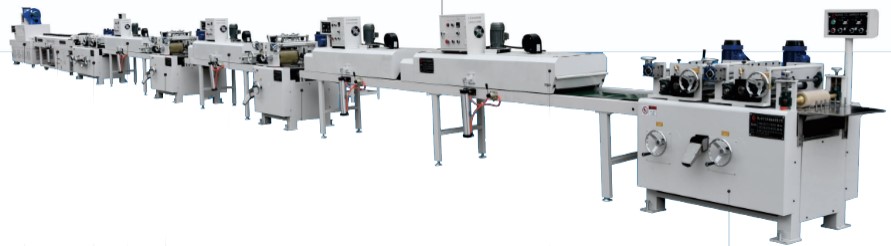

PVC ABS furniture edge banding extrusion machine
|
Item
|
Range
|
Tolerance Range
|
||
|
Width
|
12~20mm
|
-0.2；+0.5mm
|
||
|
21~54mm
|
-0.2；+0.8mm
|
|||
|
Thickness
|
0.4~0.7mm
|
±0.05mm
|
||
|
0.8~1.5mm
|
±0.1mm
|
|||
|
1.6~2.0mm
|
±0.15mm
|
|||
|
2.1~3.0mm
|
±0.2mm
|
|||
|
Surface gloss
|
5~30°
|
±0.3°
|
||
|
31~90°
|
±0.5°
|
|||
|
Meters/Roll
|
≤100m
|
±0.5m
|
||
|
100~300m
|
±0.8m
|
|||
|
Note: The size details and tolerance range of profile series can be negotiated by both parties.
|
||||
Category:
Share
Describe
|
Extruder model |
SJ65/25 |
SJSZ51/105 |
|
Product width(mm) |
12-60mm |
12-60mm |
|
Product thickness(mm) |
0.4-3mm |
0.4-3mm |
|
Capacity |
30-80kg/h |
50-120kg/h |
|
Production cavity |
1-2 cavities |
1-4 cavities |
|
Production speed |
18000-20000m in 12 hours (Single cavity production) |
30000-35000m in 12 hours (four cavities production) |
|
Motor power (Kw) |
15kw |
15kw |
|
Printing gloss |
5~90° |
5~90° |
