OPVC pipe extrusion machine line
PvC-O pipe line introduction

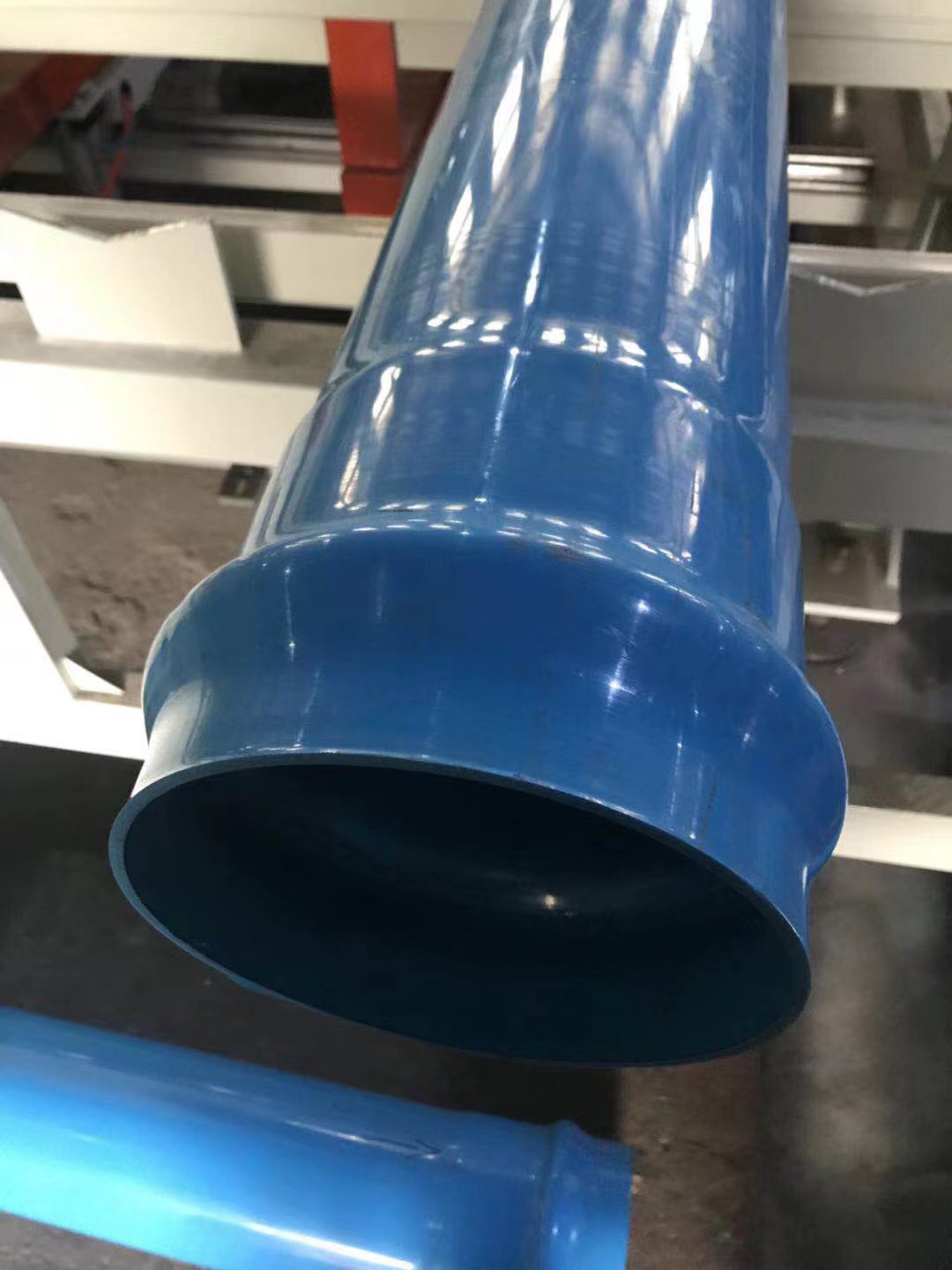

PVC-O pipe is manufactured by special orientation processing technology, by using the extrusion methodof Pvc-U pipe for axial stretching and radial stretching, the PVc long chain molecules in the pipe can bebiaxial arranged, to obtain high strength, high toughness, high impact, fatigue resistance of new PVC pipe.The pipe performance is much better than ordinary PVC-U pipes. Research and development of PVC-0 pipecan greatly save raw material resources, reduce costs, improve product performance, and have obvious economic and social benefits.
Mode |
Pipe Diameter (mm) |
Extruders |
Max. output (kg/h) |
Motor power (kw) |
OPVC-160 |
90-160 |
BPS78/33 |
250 |
45kw |
OPVC-250 |
200-250 |
BPS78/33 |
300 |
45kw |
OPVC-400 |
280-400 |
BPS93/37 |
500 |
79kw |
OPVC-630 |
450-630 |
BPS114/37 |
800 |
118kw |
OPVC-800 |
450-630 |
BPS114/37 |
900 |
118kw |
