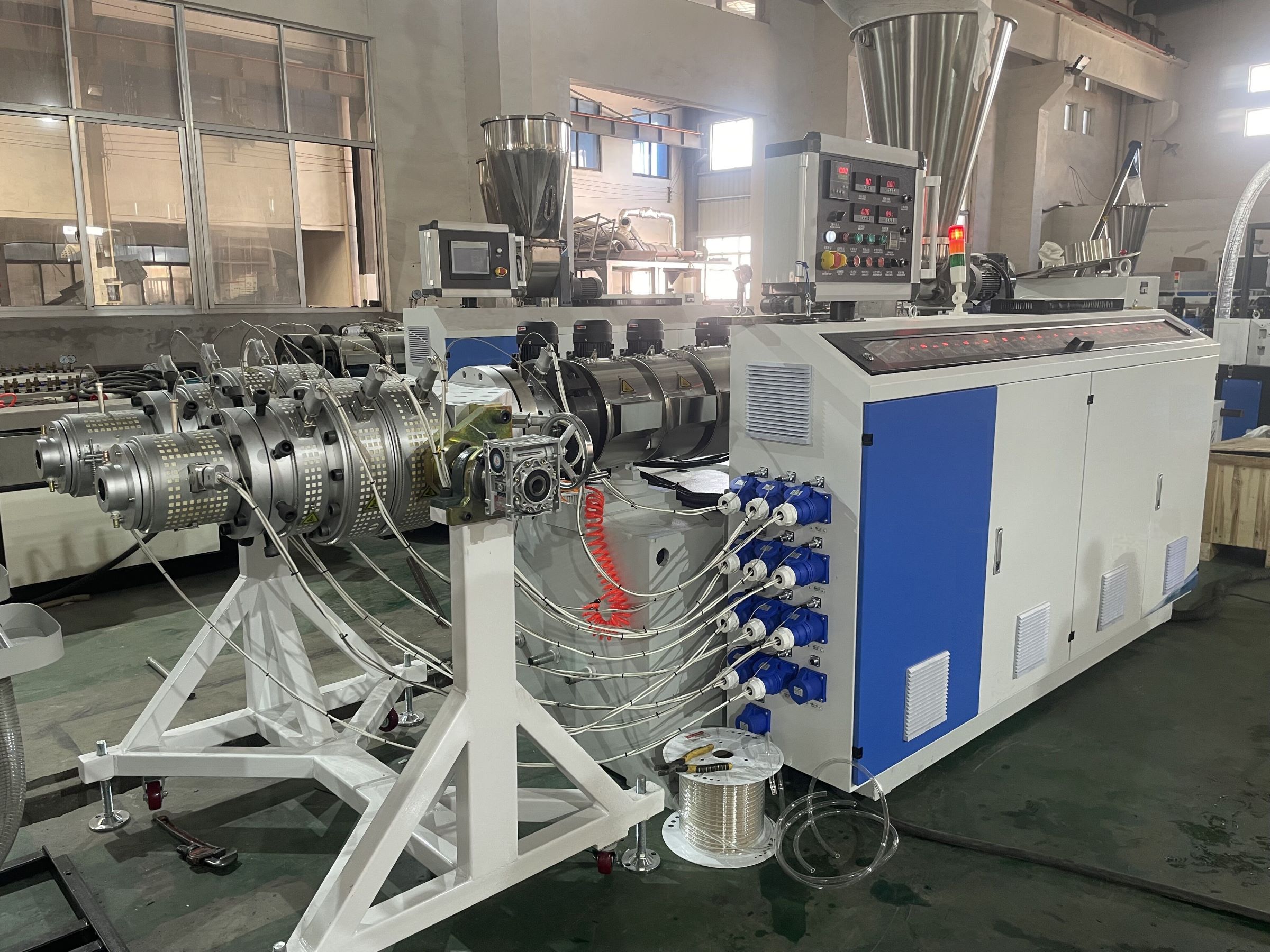

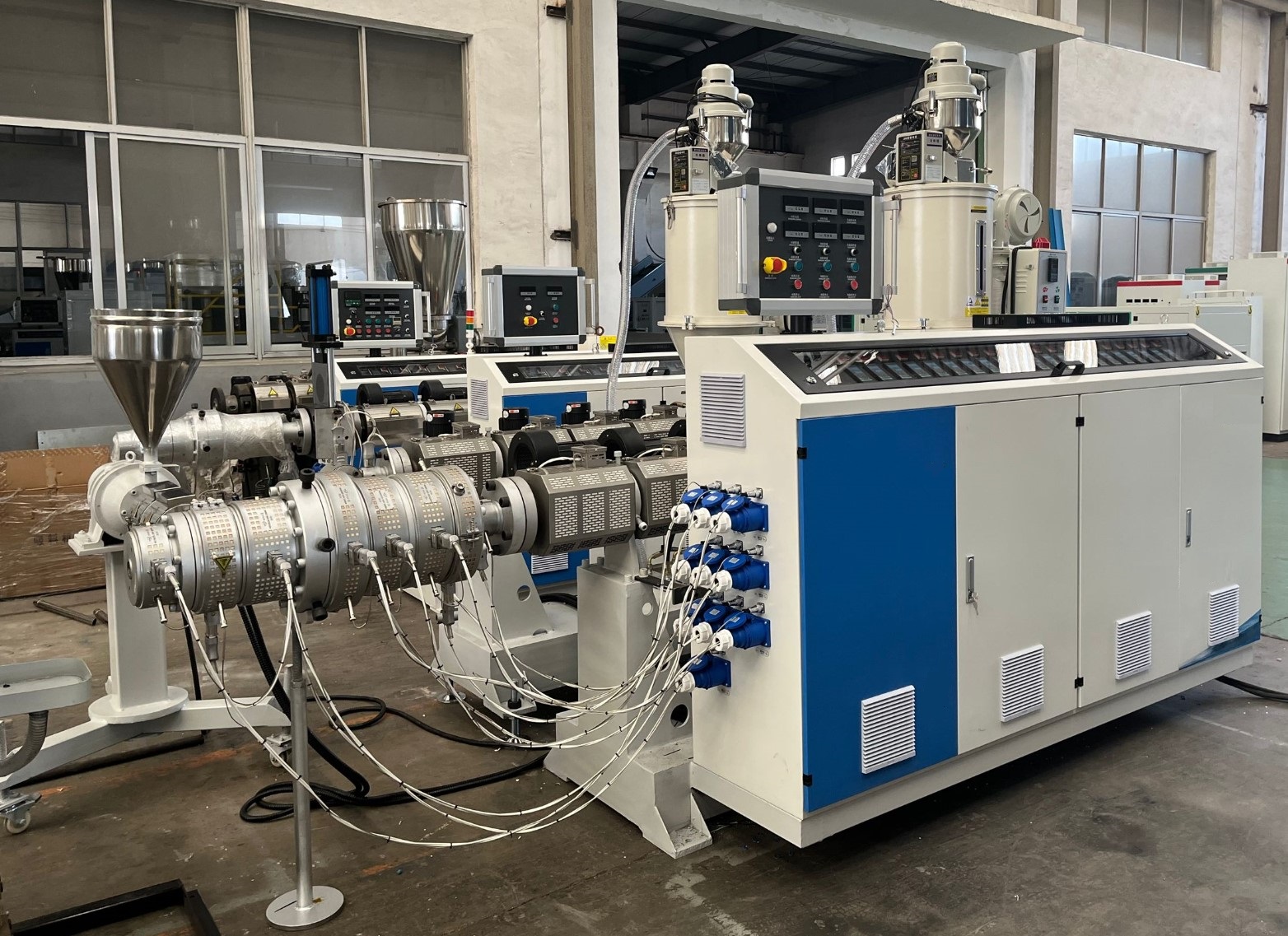

PPR PERT pipe extrusion machine line
PPR pipe extrusion line :
PPR Pipe machine is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine,planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Advantages (PP-R PIPE EXTRUSION MACHINE)
1. 10m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi-layers co extrusion with 1-5 layers.
2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6. PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusionline,and improve quality of inner pipe surface;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.
2. The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3. Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4. Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5. High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6. PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusionline,and improve quality of inner pipe surface;
7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8. Chip-free cutter ensuing flat and smooth cutting surface of pipe.
Category:
Share
Describe
|
Mode |
Pipe Diameter (mm) |
Extruders |
Max. output (kg/h) |
Motor power (kw) |
|
PPR-63 |
16-63 |
SJ65/33,SJ25/25 |
70-150 |
45kw |
|
PPR-110 |
20-110 |
SJ65/33,SJ25/25 |
140-220 |
55kw |
|
PPR-160 |
50-160 |
SJ75/33,SJ25/25 |
180-220 |
75kw |
|
PPR-63*2 |
2*(16-63) |
SJ120/33,SJ25/25 |
180-220 |
110kw |
