PET PP PE bottles crushing washing drying recycling machine
Application : Suit for recycling Waste PET bottles, include Water bottles, Soft drinks bottles, Oil bottles,PE bottles/Milk bottles, PP bottles, etc.

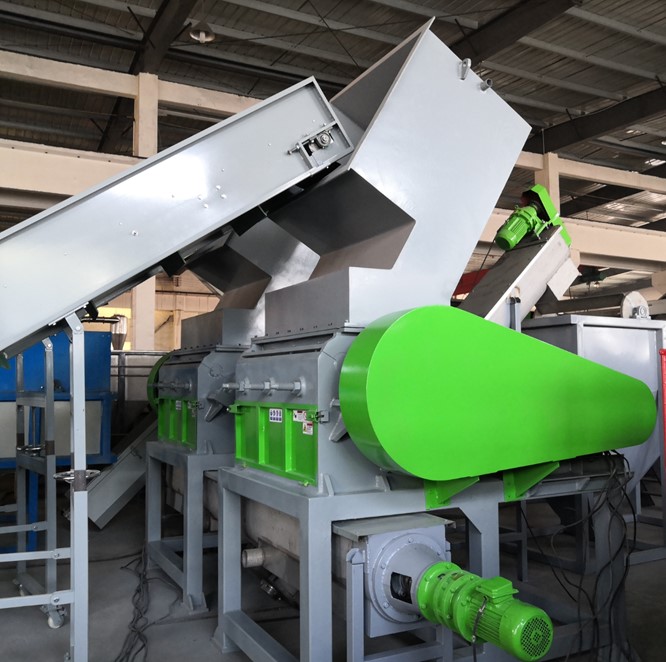

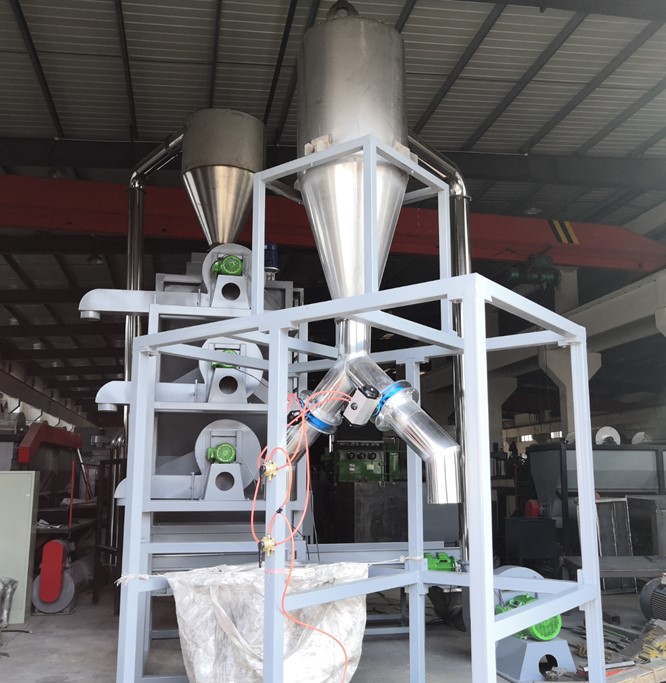

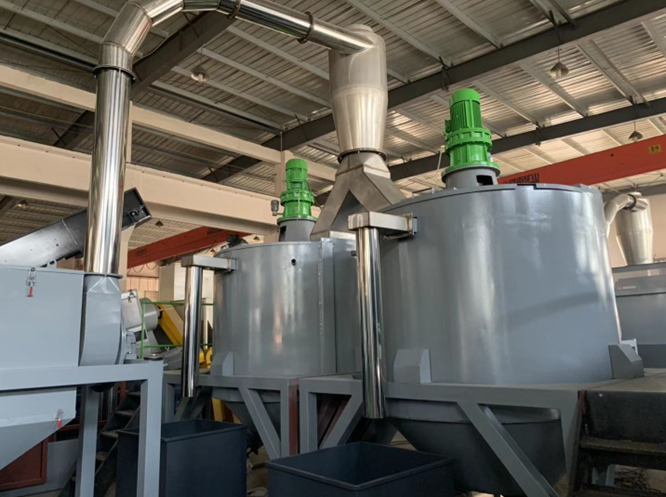

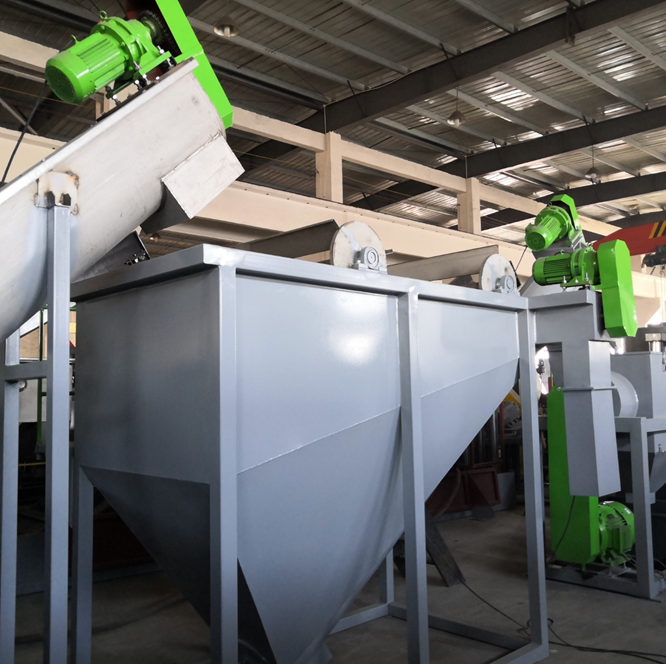

- Specification : The PET bottles Recycling Line is mainly composed of Single Shaft Shredder/Plastic Crusher, Loader, Per-washer, Label Removing Machine, vertical Dewatering Machine, Dryer and other equipment.It is suitable for handling PET bottle. Material will be processed by label removing, crushing, washing, dewatering, and drying. The humidity of final output could be within 2%.The whole production line is easy to operate, efficient and low energy consumption.
Device parameters |
|||
Size |
Capacity |
Motor Power |
Equipment footprint |
PET300 |
300kg/h |
150KW |
180m 2 |
PET500 |
500kg/h |
180KW |
200m 2 |
PET1000 |
1000kg/h |
220KW |
250m 2 |
PET2000 |
2000kg/h |
260KW |
350m 2 |
PET3000 |
3000kg/h |
380KW |
500m 2 |
PET4000 |
4000kg/h |
500KW |
700m 2 |
Unit energy consumption |
|
Content |
Average energy consumption per ton of bottle |
Electricity |
70-90KW |
Water |
1-1.5T |
Compressed air |
0.5-1m3 |
Steam (optional) |
250-400KG |
Detergent (optional) |
4-8KG |
Bottle quality reference |
||
Description |
AA(ppm) |
A(ppm) |
PVC content |
≤25 |
≤100 |
PE/PP/colored bottle/metal/other |
≤75 |
≤100 |
Total impurity |
≤100 |
≤200 |
